Ventilation Fan

Booster Fan Series

Booster Fan Series is a ventilation fan option for duct boost, simple installation review, support airflow and similar projects.

Start here

Start here when the project needs ventilation fan for duct boost or simple installation review. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Ventilation Fanproduct family Documentsmodel documents
Typical uses 3 checks Key inputs Airflow CFM / Static pressure / Duct size / Motor type Product documents 1 available Request model documents Model review
  • Duct boost
  • Simple installation review
  • Support airflow
Request model documents

Series options

Compare Booster Fan Series options

Review photos, key specs, typical uses, and document needs before requesting current model documents.

Booster Fan equipment view

Booster Fan Series

Booster Fan

Booster fan for duct-assist projects, greenhouse or storage airflow support, inline duct booster paths, and mixed-flow booster review where the installer already knows target CFM, duct length, elbows, and why the run needs assistance.

Booster Fan should be reviewed around duct booster applications, support airflow, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs
Airflow Confirm CFM by model Model review Voltage Confirm the US voltage option Model review Mounting Inline duct assist mounting; verify installation position Model review
Typical uses
  • Duct booster applications
  • Support airflow
Build notes
  • 4/6/8 inch size range
  • Copper motor and simple installation details
  • Best reviewed after duct route and pressure loss are known
  • Use fan data before assuming delivered airflow
Check current model documents before quote or submittal use. Model data

Technical parameters

Booster Fan technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number Booster Fan Series Model identifier
Airflow Confirm CFM by model Confirm by model
Voltage and phase Confirm the US voltage option Confirm by model
Dimensions 4/6/8 inch options available; confirm exact dimensions Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Inline duct assist mounting; verify installation position Confirm by model
Warranty Confirm warranty terms by product and sales channel Confirm by model

Factory reference

Factory model reference

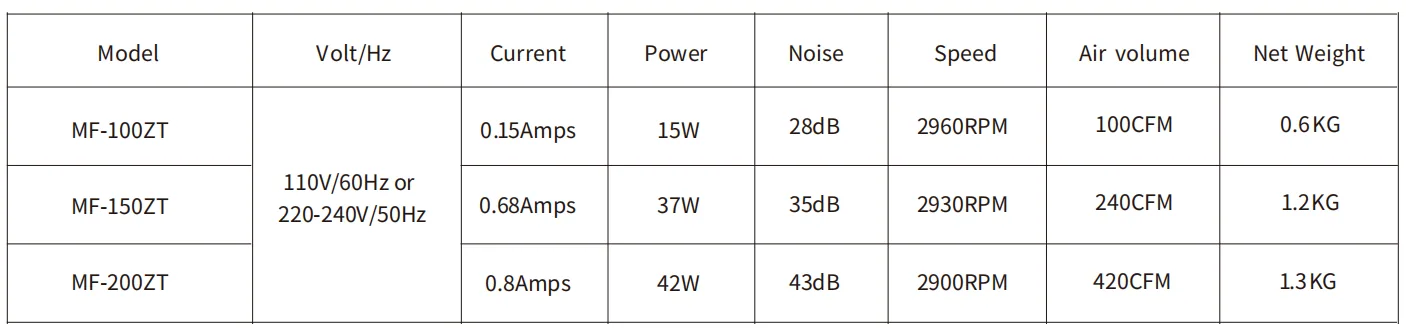

Booster Fan model reference table

Factory model reference for early comparison. Confirm current model documents before submittal or release use.

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

Booster Fan Series equipment detail 1
Booster bodyDuct length, elbows, and target CFM must be known first.

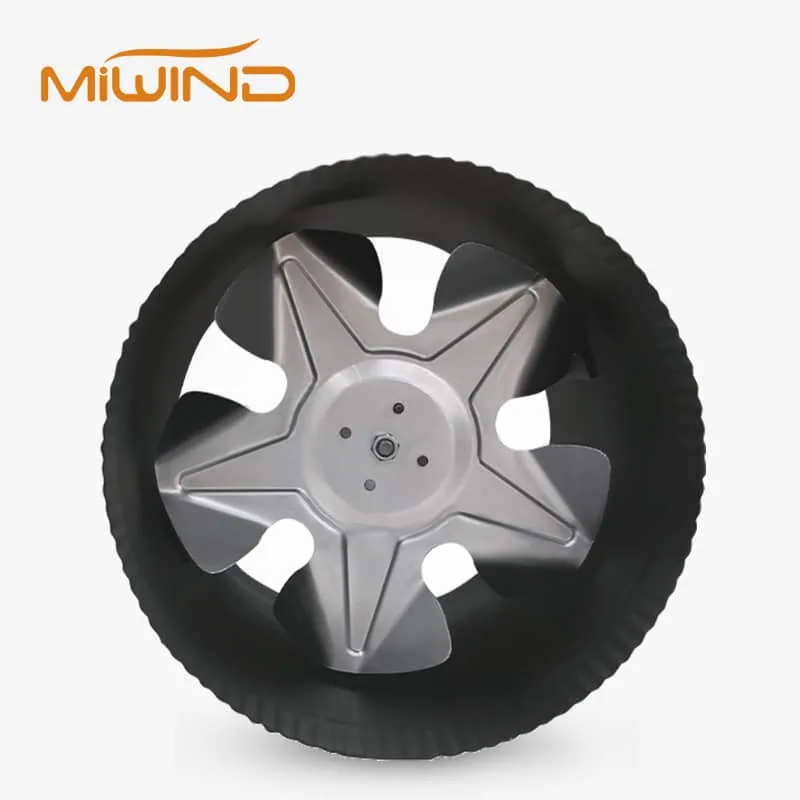

Booster Fan Series equipment detail 2
Install viewConfirm installation position and controls before review.

Applications

Applications

For fan model documents, prepare room type, target CFM or ACH, duct sketch, approximate equivalent length, voltage, control expectation, mounting location, and service-access constraints.

Typical uses

Review bathrooms, storage rooms, light-commercial rooms, support spaces, and ducted ventilation paths by required CFM, duct length, fittings, discharge location, and sound sensitivity.

Selection boundary

Review this series when a ducted fan path is appropriate. Move to cabinet or utility fan review when higher pressure, larger service access, enclosure needs, or a different fan construction is driving the decision.

Installation review

Confirm duct diameter, equivalent length, elbows, backdraft protection, service clearance, mounting orientation, and wiring or speed-control expectations before selecting a fan body.

Parameter reading

Read CFM together with static pressure, sound, motor type, power input, and duct size. A free-air CFM value is only a starting point when the installed duct path adds resistance.

Sizing Inputs

Ducted systems need a fan selected around CFM, duct path, pressure loss, noise sensitivity, and service access.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Gather target CFM, duct diameter, duct length, elbows, filters, and expected static pressure.
  • Avoid selecting by duct diameter alone.
  • Confirm noise, service access, and controls before model review.
Airflow CFMStatic pressureDuct sizeMotor typeVoltageSound rating where available
