Ventilation Fan

Inline Duct Fan Series

Inline Duct Fan Series is a ventilation fan option for ducted ventilation, restrooms, utility rooms and similar projects.

Start here

Start here when the project needs ventilation fan for ducted ventilation or restrooms. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Ventilation Fanproduct family Documentsmodel documents
Typical uses 4 checks Key inputs Airflow CFM / Static pressure / Duct size / Motor type Product documents 1 available Request model documents Model review
  • Ducted ventilation
  • Restrooms
  • Utility rooms
  • Booster ventilation
Request model documents

Series options

Compare Inline Duct Fan Series options

Review photos, key specs, typical uses, and document needs before requesting current model documents.

Inline Duct Fan equipment view

Inline Duct Fan Series

Inline Duct Fan

Mixed-flow inline duct fan for supply or exhaust runs, silent mixed-flow inline duct fan review, and pipeline fan requests that need round duct compatibility, two-speed control review, and pressure-aware fan selection.

Inline Duct Fan should be reviewed around ducted exhaust, ventilation booster applications, general air movement, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs
Airflow Confirm CFM by model Model review Voltage Confirm the US voltage option Model review Mounting Inline duct mounted Project input
Typical uses
  • Ducted exhaust
  • Ventilation booster applications
  • General air movement
Build notes
  • 4/6/8/10/12 inch size range
  • Mixed-flow body combining axial and centrifugal fan characteristics
  • Two-speed adjustment details
  • ABS plastic housing for round-duct installation
Check current model documents before quote or submittal use. Model data

Technical parameters

Inline Duct Fan technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number Inline Duct Fan Series Model identifier
Airflow Confirm CFM by model Confirm by model
Static pressure Fan curve needed for the selected pressure point Project input
Voltage and phase Confirm the US voltage option Confirm by model
Dimensions 4/6/8/10/12 inch options available; confirm exact dimensions Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Inline duct mounted Project input
Controls Confirm 2-speed or other control package Confirm by model
Warranty Confirm warranty terms by product and sales channel Confirm by model

Factory reference

Factory model reference

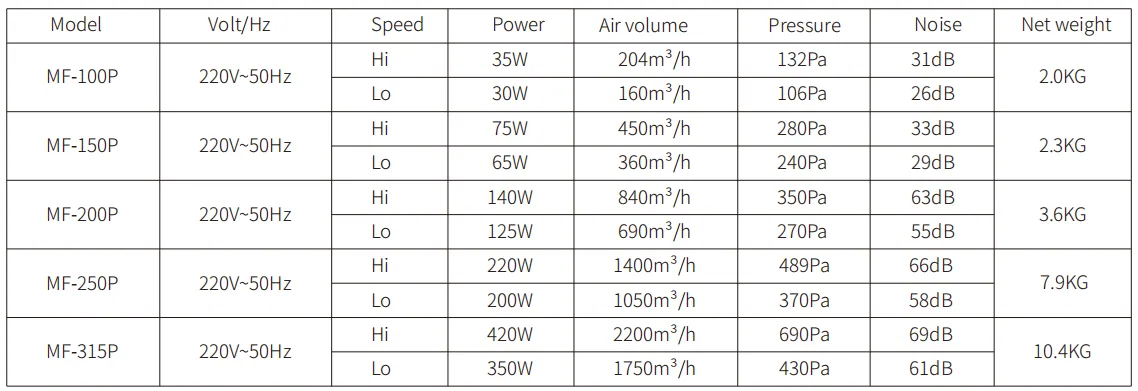

Inline Duct Fan model reference table

Factory model reference for early comparison. Confirm current model documents before submittal or release use.

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

Inline Duct Fan Series equipment detail 1
Inline fan bodyDuct diameter, access, and pressure target before fan review.
Inline Duct Fan Series equipment detail 2
Housing detailReview clamps, casing, and service access for the duct run.

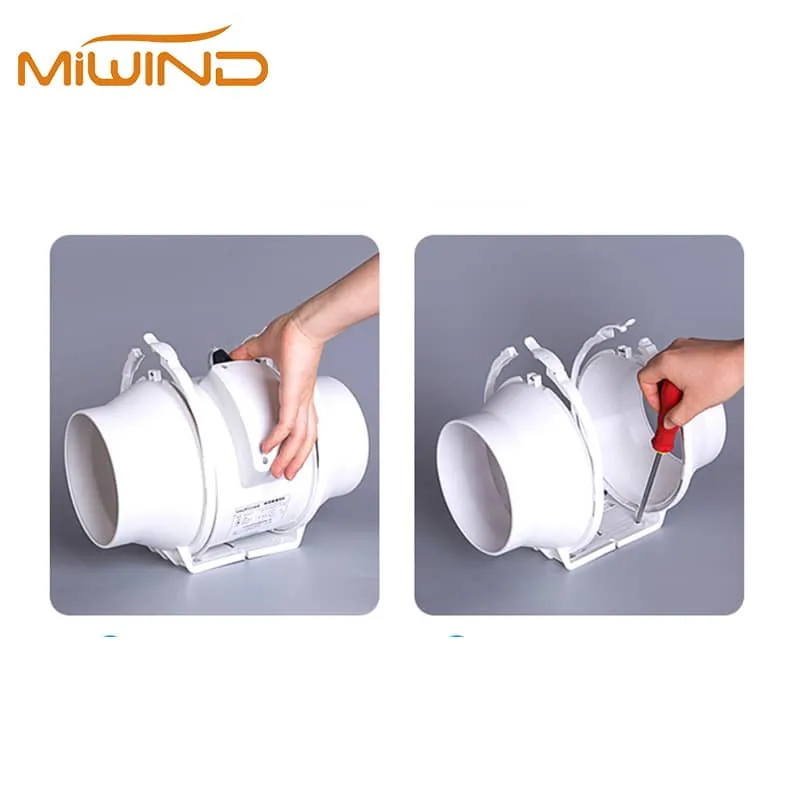

Inline Duct Fan Series equipment detail 3
Impeller viewAirflow and static pressure still come from fan data, not the photo.

Applications

Applications

For fan model documents, prepare room type, target CFM or ACH, duct sketch, approximate equivalent length, voltage, control expectation, mounting location, and service-access constraints.

Typical uses

Review bathrooms, storage rooms, light-commercial rooms, support spaces, and ducted ventilation paths by required CFM, duct length, fittings, discharge location, and sound sensitivity.

Selection boundary

Review this series when a ducted fan path is appropriate. Move to cabinet or utility fan review when higher pressure, larger service access, enclosure needs, or a different fan construction is driving the decision.

Installation review

Confirm duct diameter, equivalent length, elbows, backdraft protection, service clearance, mounting orientation, and wiring or speed-control expectations before selecting a fan body.

Parameter reading

Read CFM together with static pressure, sound, motor type, power input, and duct size. A free-air CFM value is only a starting point when the installed duct path adds resistance.

Sizing Inputs

Ducted systems need a fan selected around CFM, duct path, pressure loss, noise sensitivity, and service access.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Gather target CFM, duct diameter, duct length, elbows, filters, and expected static pressure.
  • Avoid selecting by duct diameter alone.
  • Confirm noise, service access, and controls before model review.
Airflow CFMStatic pressureDuct sizeMotor typeVoltageSound rating where available
