Air Curtains

A3 Heating Air Curtain Series

A3 Heating Air Curtain Series is a air curtains option for retail comfort, cold-weather entries, heated entrance review and similar projects.

Start here

Start here when the project needs air curtains for retail comfort or cold-weather entries. Confirm dimensions, voltage, access, controls, and current model documents before selecting an exact model.

Seriesproduct overview Air Curtainsproduct family Documentsmodel documents
Typical uses 3 checks Key inputs Door width / Mounting height / Heated or unheated / Voltage Product documents 1 available Request model documents Model review
  • Retail comfort
  • Cold-weather entries
  • Heated entrance review
Request model documents

Series options

Compare A3 Heating Air Curtain Series options

Review photos, key specs, typical uses, and document needs before requesting current model documents.

A3 Heating Air Curtain equipment view

A3 Heating Series

A3 Heating Air Curtain

Heated entrance air curtain for comfort-driven doors where the air barrier, warm-air function, voltage, and controls must be reviewed together.

A3 Heating Air Curtain should be reviewed around retail entrances, comfort-focused doors, mounting conditions, electrical service, controls, and access for installation or service.

Use the visible product photos and model reference image to start the comparison, then confirm release documents before quoting, submittal, certification language, or final project use.

Key specs
Airflow Confirm CFM by model Model review Voltage Confirm the US voltage option Model review Mounting Surface-mounted heated unit; verify clearances Model review
Typical uses
  • Retail entrances
  • Comfort-focused doors
Build notes
  • Combines air-curtain separation with warm-air function
  • Heating-element details are reviewed through current model documents
  • Suitable for cold-weather entrance comfort review
  • Electrical service and clearance need early confirmation
Check current model documents before quote or submittal use. Model data

Technical parameters

A3 Heating Air Curtain technical parameters

The first model table shows how to read available values before final confirmation on the exact model page.

Spec field Selection value Use boundary
Model number A3 Heating Series Model identifier
Airflow Confirm CFM by model Confirm by model
Voltage and phase Confirm the US voltage option Confirm by model
Dimensions Confirm inch dimensions by model Confirm by model
Weight Confirm shipping and installed weight Confirm by model
Mounting type Surface-mounted heated unit; verify clearances Confirm by model
Heating type Confirm heating capacity and voltage Confirm by model
Warranty Confirm warranty terms by product and sales channel Confirm by model

Factory reference

Factory model reference

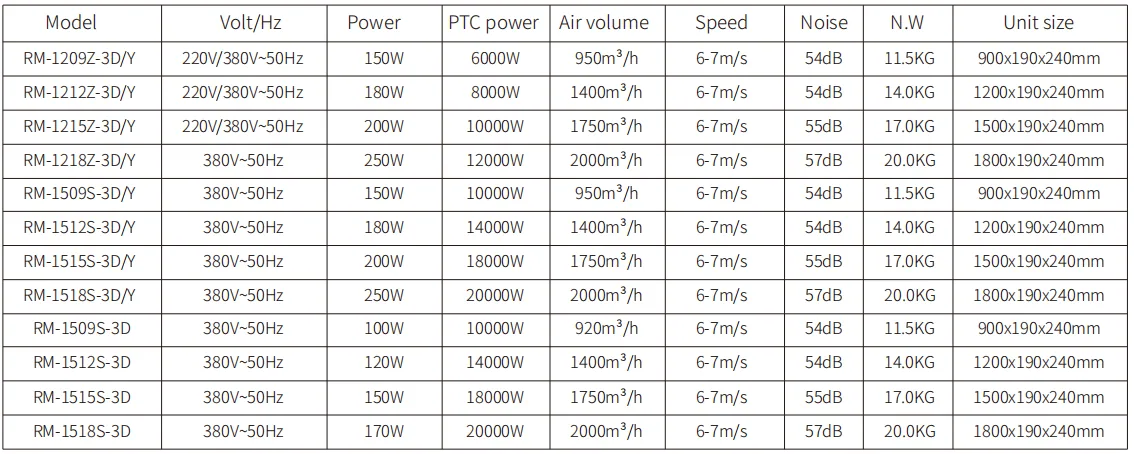

A3 Heating Air Curtain model reference table

Factory model reference for early comparison. Confirm current model documents before submittal or release use.

Equipment photos

Equipment views that change selection

Use the photos to confirm the visible form factor, access side, mounting details, and service points before reading the longer selection notes.

A3 Heating Air Curtain Series equipment detail 1
Heated unit viewHeating use requires voltage, capacity, controls, and clearances.
A3 Heating Air Curtain Series equipment detail 2
Heating front viewComfort-entry context before electrical documents.
A3 Heating Air Curtain Series equipment detail 3
Outlet detailDischarge and heating data should be confirmed in model data.

Applications

Applications

For submittal documents or current model documents, prepare door dimensions, mounting height, voltage, heated or unheated preference, controls, quantity, and any certification or document requirement by exact model.

Typical uses

Review doorway width, clear opening height, traffic pattern, wind exposure, and whether the entrance is retail, restaurant, cold-room, or service-door use. Treat a restaurant entrance air curtain with frequent door traffic as a separate review from a cold-room or low-traffic interior opening.

Selection boundary

Review this series when the project needs a surface-mounted door air curtain. Move to another series when the opening needs a different motor class, heated construction, recessed mounting, cold-storage duty, or wider industrial coverage.

Installation review

Check header clearance, bracket position, electrical access, door sensor expectations, and discharge direction before treating the model as ready for ordering. Photos of the doorway usually improve the first review.

Parameter reading

Read airflow, velocity, sound, width, voltage, and control notes together. A door-width match alone is not enough when comfort, insect control, heating, or cold-room separation is part of the decision.

Sizing Inputs

Open doors create comfort complaints, insect entry, dust movement, and temperature swings that need doorway-specific review.

Start with the visible model cards above, then collect the few site conditions that change equipment fit before requesting final model documents.

  • Start with finished door width, finished door height, and mounting height.
  • Confirm whether the opening is indoor-to-outdoor, conditioned-to-unconditioned, or cold-room service.
  • Review voltage, heating preference, control method, and available mounting space before model review.
Door widthMounting heightHeated or unheatedVoltageAir velocity or airflow dataSound rating where available
